Audit 106 Thickness Gauge
Sale ✓
Rental ✘

The Audit Series provides users with an optimum combination of economy, accuracy, robustness and simplicity of operation.

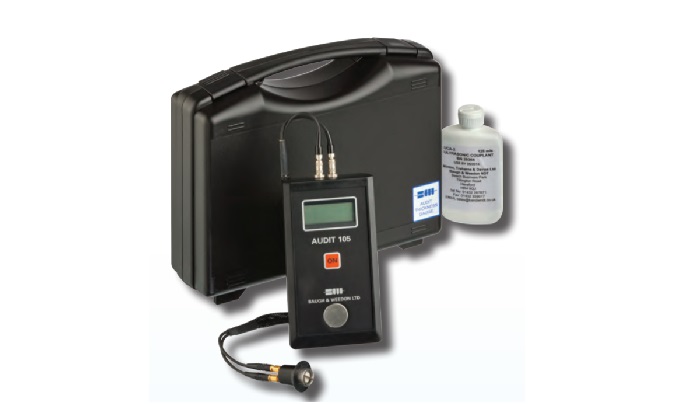

The Audit 106 offers the additional facility of ten preset calibration programs for a selection of commonly used engineering materials. Program selection is simply effected by pressing the MAT button. The Audit 106 also features a zero facility.Press the ON button, apply couplant (liquid or gel) to the area to be measured, place the probe on the surface, and read the LCD display. And that’s all - no controls, and no difficult calibration procedures. A built-in warning display eliminates the risk of spurious readings, and the instrument switches itself off when not in use. As a confidence check, a 6mm test block mounted on the front panel is always available for reference, to ensure the correct operation of instrument and probe.

The standard DT25 probe is specially constructed to withstand the most arduous operating conditions and the roughest of handling. An integral probe lead is connected to the durable stainless steel probe housing via a flexible fitting to reduce the risk of breakage. The cable is further protected by a covering sheath, and connects to the instrument via a robustly constructed plug. An alternative DT15 Probe with separate lead is available. The DT1, used with a spring loaded holder, is able to locate accurately on curved surfaces down to a radius of 20mm.

    Applications

    Audits are essential tools for the Plant Maintenance Engineer or Engineering Surveyor. From pipelines to pressure vessels, tubes to tankers, castings to casings, boilers to bunkers, stairways to stanchions, cranes to conveyors, and gas tanks to gantries, Audit ultrasonic thickness gauges are the cost effective way to:
    + Comply with statutory requirements.
    + Measure abrasion wear rates.
    + Measure rates of corrosion.
    + Plan intervals between inspections.
    + Avoid costly unscheduled maintenance.
    + Assess working plant without shutdown.

    ln addition, many applications exist in Quality Control & Quality Assurance where it is important to confirm that dimensions are within specified requirements.
