Eddy Current Probes & Accessories

Agility NDE, in collaboration with ETher NDE, can offer a full range of standard probes, weld probes, special probe design services and a wide choice of probe accessories, including cables for all probes and instruments, and various test blocks. With manufacture based in-house, we have the ability to guarantee you the quality you expect.

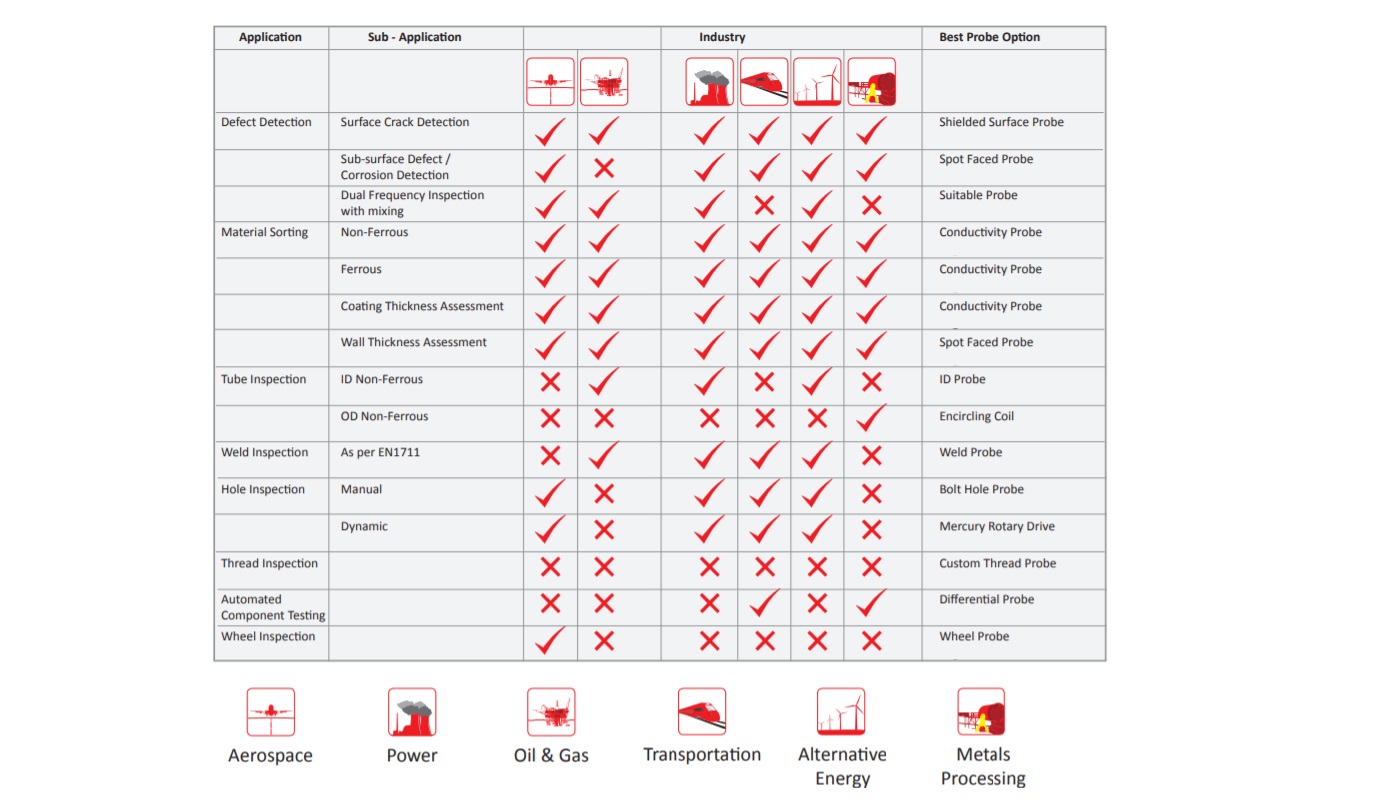

Probe Applications









Pencil Probes - Absolute & Bridge

Absolute Pencil Probes: For general purpose inspecton of surface breaking defects and metallurgy variatons. Uses a Micro connector.
Bridge Pencil Probes: ETher NDE newly developed “IB Tech Inside” absolute intrinsically balanced technology which further improves the signal to noise rato of conventional Absolute Probes giving a signifcant improvement in inspecton reliability. Uses a Lemo 4-Way connector.
Specification:
  • Double Shielded, used on Fe & NFe applications, Disconnectable
  • Non Magnetic Stainless Steel Shanks - Straight, 90° Tip, 45° Crank, 15° crank + 90° Tip
  • Plastic Handle with finger scallops and neoprene grip
  • Connector – Micro for Absolute and Lemo 4-Way for Bridge (IB Tech Inside)
  • Centre frequency/Operatng range – 200kHz (50kHz – 600kHz), 500kHz (150kHz – 1.5MHz), 2MHz – (650kHz – 6MHz), 6MHz – (2MHz – 18MHz)
  • Probe colour coding available.

Standard Weld Probes - Bridge

Differential Weld Probes: For in-service inspecton of welded structures.
Specification:
  • Straight, 90° Inline, 90° Right Angle
  • Diameters, 11.0mm (Small), 16mm (Medium), 32mm (Large)
  • Disconnectable and integral probe cables
  • Cable lengths from 1.5 to 100 meters
  • Frequency range 100kHz, 20kHz, 100-600kHz
  • Minimal lift off signal, can find cracks through paint, oil, conductve and non-conductive coatings
  • Made from hard wearing PET
  • Stainless steel and ceramic tips available on request.
Notes:
  • 100kHz probes used on standard ferrous welds.
  • 100-600kHz probe can be used on aluminium and stainless steel welds.
  • 20kHz probe can be used on multi-surface applications and duplex.

Broadband Probes - Absolute & Bridge

Absolute Unshielded Broad Band Probes: For general purpose inspecton of surface breaking defects and metallurgy variations and to estimate coating (Paint) thickness.
Bridge Unshielded Broad Band Probes: ETher NDE newly developed “IB Tech Inside “ absolute intrinsically balanced technology which further improves the signal to noise ratio of conventional Absolute Probes giving a signifcant improvement in inspection reliability. Uses a Lemo 4-Way connector.
Specification:
  • Broad range with centre frequency – 5kHz, 20kHz, 100kHz, 500kHz, 2MHz
  • Plastic Handle with neoprene grip
  • Connector – BNC for Absolute and Lemo 4-Way for Bridge (IB Tech Inside)
Notes: A range of balance loads are also available for use with some impedance plane instruments.

Thread Inspection Probes (Unshielded) - Absolute

Unshielded Absolute Thread Inspection Probes: For crack detection in external and internal threads.
Specification:
  • Micro connector • Centre frequency range - 200kHz 500kHz, 2MHz
  • Operatng range – 200kHz (50kHz – 600kHz), 500kHz (150kHz – 1.5MHz), 2MHz – (650kHz – 6MHz)
  • Used on Fe & NFe applications
  • Disconnectable
  • Chisel and Pointed versions available
Notes: This range of probes comes with either a pointed or chiselled tip.

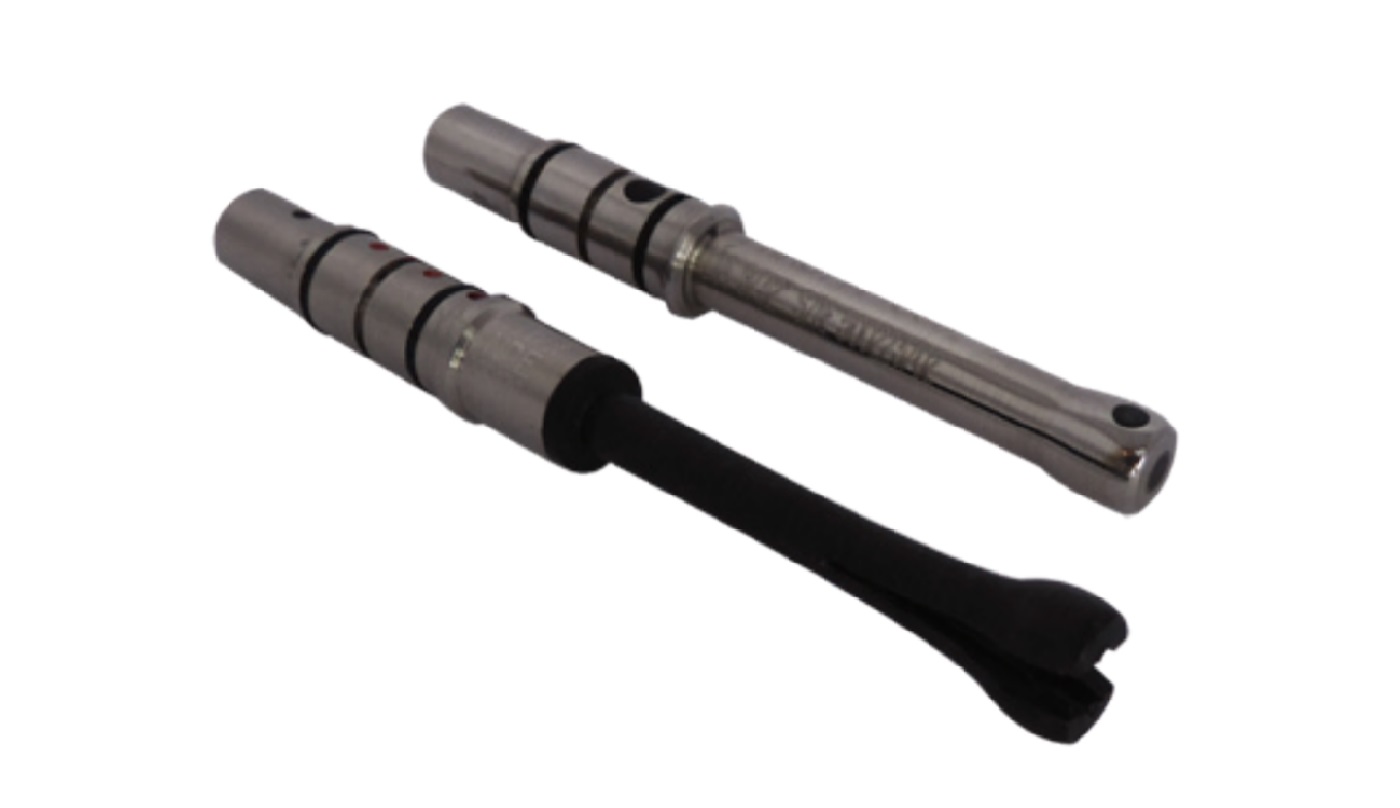

Rotating Probes - Reflection

Differential Rotating Probes: For internal diameter inspection of fastener holes, countersinks and counter bores.
Specification:
  • Probe diameters from 1.6 to 50mm, available in 0.01mm steps.
  • Fischer connector to ETher NDE Small and Large drive also compatble with Hocking, GE, Rohmann and Forster drive units.
  • Frequency range from 200kHz to 2MHz.
  • Comes in Rigid Stainless Steel and Delrin Flexible options.
Notes: When ordering Rotating Probes 0.1mm is automatically taken of probe diameter during manufacture, this should be good for typical hole condition and manufacturing tolerances. Where tolerances are poor, allow for greater clearance.

Example: To inspect a 12.7 (1/2”) hole a 12.7mm dia. probe should be ordered which will be manufactured to a 12.6mm dia..

Internal Diameter (ID) Probes - Bridge

Differential ID Probes: For internal diameter tube inspection, ideal for inspecting tubular heat exchangers.
Specification:
  • Probe diameters from 7.5 to 150mm, available in 0.1mm steps.
  • Disconnectable and integral probe cables.
  • Cable lengths from 3.0 to 30 meters.
  • Frequency range from 2.7 kHz to 1MHz, centre frequencies 2.7, 10, 24, 76, 190, 400kHz.
  • Cross axis and driver/pickup optons also available on request.
Notes: When ordering ID probes allow 0.8 to 1.5mm less than the tube diameter. This should be good for typical tube conditon and manufacturing tolerances. Where tolerances are poor, allow for greater clearance. Tape can be used were necessary to reduce probe ‘wobble’.

Low Frequency (Spot Face) Probes, Straight and 90°

Reflection Sub Surface Probes: for general purpose inspection of sub-surface corrosion and flaws. This probe has excellent depth penetration making it ideal for multi-layer inspections.
Specification:
  • Broad frequency ranges.
  • Excellent low frequency performance.
  • Integrated 4-way Lemo connector.
  • Built in balance coils.
  • Right angled probes are intrinsically balanced.
Notes: The lower the frequency, the deeper the depth of penetration.

Eddy Current Probe Cables

Manufactured in-house, we can supply cables fitted with connectors to suit all applications and equipment, to allow connection of all types of probes; absolute, bridge and reflection.

Eddy Current Test Blocks

Test blocks both general purpose with 0.2 (0.008”), 0.5 (0.020”) and 1.0mm (0.040”) slots to enable correct calibration and coating thickness calibration standard with 0.5 (0.02”), 1.0 (0.04”) and 2.0mm (0.08”) slots including x4 0.5mm (0.02”) shims, used in conjunction with Broad Band (paint) Probe PUB100k to set sensitvity levels before weld inspection.
  • Ferrous (Steel EN1A) + 4 x 0.5mm Shims
  • Aluminium Alloy 7075-T6
  • Titanium 6A14V
  • Stainless Steel
  • Stainless Steel 316
  • Duplex + 4 x 0.5mm Shims

Conductivity Test Block

Used as a reference in the application of electrical conductvity measurement of non-ferrous metals. Ideal for both laboratory and field use. Blocks are supplied with calibration certificates.
Calibration:
  • Blocks are tested and are certified and traceable to National Standard (NPL, UK) Conductvity References.
  • Blocks are calibrated at 20°C, at a frequency of 60kHz and to an accuracy of +/- 1.2% of the value or +/-0.4% IACS; whichever is less.
Materials:
  • Copper
  • Aluminium Alloy
  • Aluminium Alloy, 6082-T6
  • Aluminium Alloy, 6061-T4
  • Aluminium Alloy, 2014A-T6
  • Aluminium Alloy, 2014A-T4
  • Aluminium Alloy, 7075-T6
  • Aluminium Alloy, 5083
  • Brass
  • Phosphor Bronze
  • Nickel Silver
  • Stainless Steel
  • Titanium, 6AL-4V

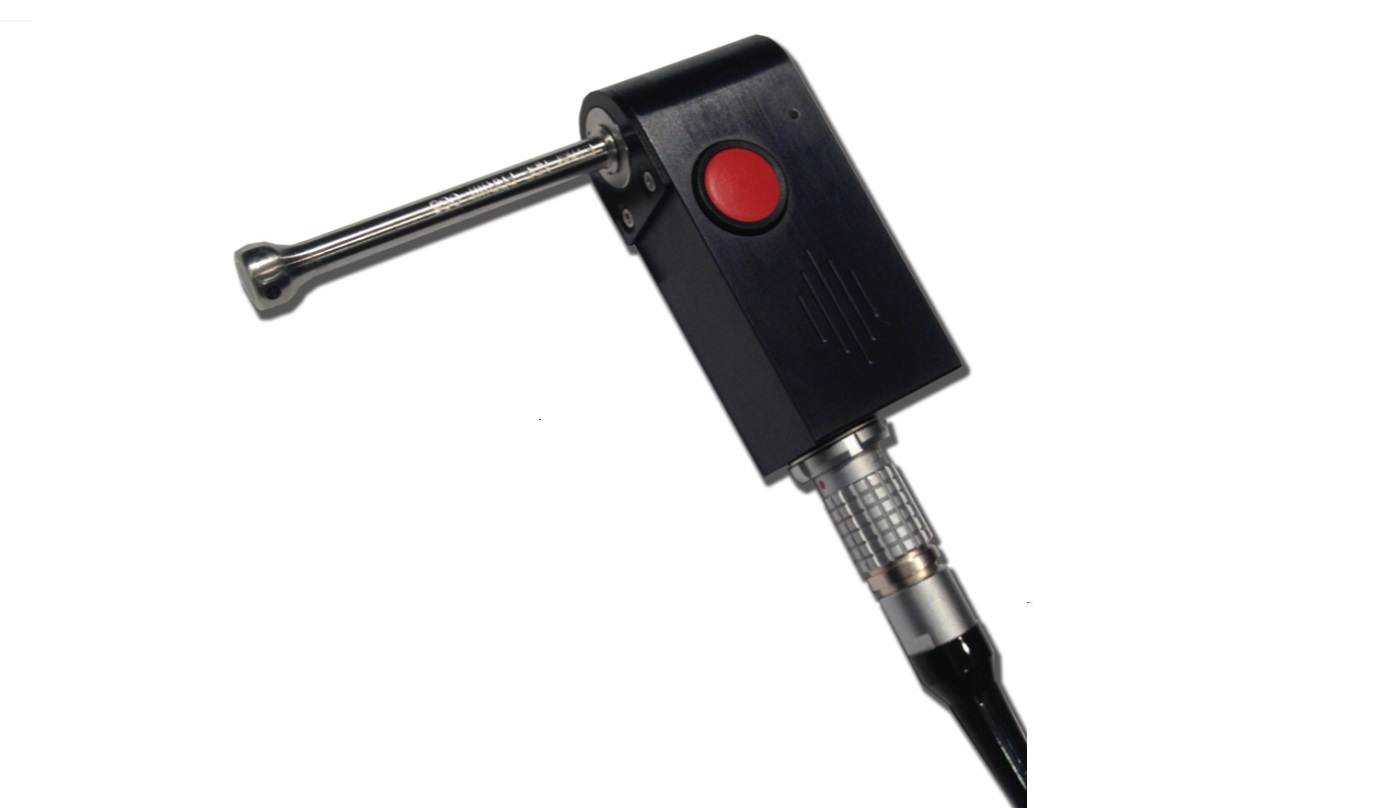

Mercury Mini Rotary Drive

Eddy current rotary inspections of fastener holes and countersinks are performed routinely in the Aircraft Maintenance Industry, but also now increasingly used in for the inspecton of bolt-holes on wind turbines.
High-speed surface inspection is also another area of increasing usage.

Perfect for tight spaces, the Mercury Rotary Drive is designed and manufactured in-house. Featuring a clearly visible alarm LED and a camera thread mounting to facilitate easy attachment to an inspection fixture.

Compatible with the AeroCheck, AeroCheck+, Vantage G2, ETi 200, Hocking Phasec 2 & 3 and Industry Standard 4 Pin Fischer Rotary Probes.
